Solar Fixed Structure · Fixed Tilt

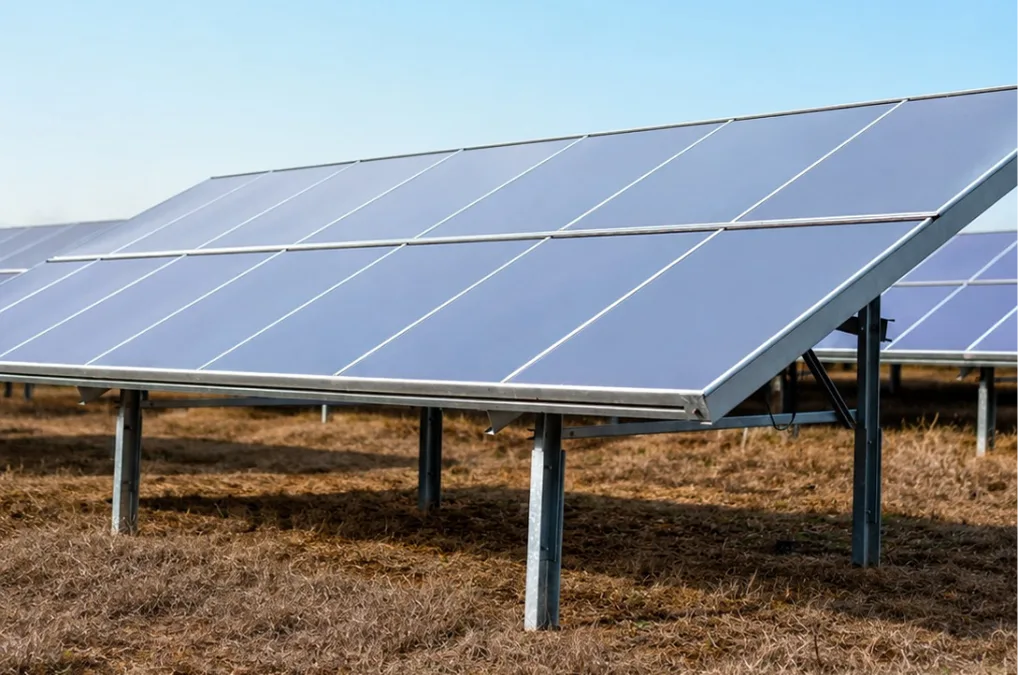

Fixed-Tilt Mount Structure

Fixed tilt mounting in independent row 1P and 2P for utility scale projects.

Fixed-Tilt Mount Structure SS-ENERGY / FIXED TILT
5° to 35°
Tilt
up to C6
Corrosion
26 to 28 t/MW
Weight
System overview

We manufacture high quality fixed tilt solar mounting structures for reliable, cost effective installations across projects of all sizes. Available in independent row 1P and 2P configurations, they are engineered for strength, durability and minimal maintenance on ground mounted projects.

Designed for maximum structural stability and efficient energy generation, our fixed tilt systems support portrait and landscape orientations in zinc magnesium alloy coated steel, HDGI, Galvalume and POSMAC with corrosion resistance up to C6 grade. They perform in harsh environmental conditions while keeping installation and maintenance costs low.

With extensive OEM manufacturing expertise, our structures meet international standards, delivering consistent performance, long service life and dependable after sales support.

Product details

Technical features

  • Bolted construction with serrated lock nuts for enhanced stability
  • HDG and Galvalume coated steel
  • High tensile grade 8.8 fasteners with zinc flake coating
  • Sigma Plus post profiles (>150 mm)
  • Cee Plus rafter and purlin profiles with stiffeners (>120 mm)
  • Foundation options: concrete pile, concrete pad, or ramming
  • Approx. weight 26 to 28 tons/MW for 330W modules (2P configuration)
  • Fixed tilt mounting structure with optional tracker ready design
  • Compatible with 335W, 450W, 530W, 545W, 645W Poly/Mono PERC and bifacial modules
  • Tilt angles: 5°, 15°, 20°, 25°, 35°
  • Modular and customizable table length based on string configuration
  • Optional manual actuator based seasonal adjustment
